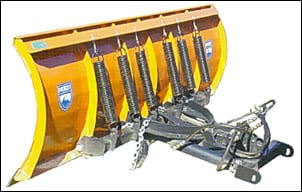

Everest Equipment - 1 Way Reversible Plow



  • 7 gauge steel moldboard
  • Light weight design
  • Tension trip moldboard design using six 3/8" steel wire adjustable tension springs
  • 1/4" thick rib plates
  • 1/2" x 8" C-1085 steel blade standard



  • 1/4" thick moldboard ribs
  • 3/8" thick base angle
  • 15" intake tapered to 40" discharge height
  • AASHO standard cutting edge
  • 1" diameter pinholes on 30-1/2" centers


  • Reversible puchframe 32 degree to either sie of bulldoze position
  • twin 3" bore by 12" double acting reverse cylinders
  • Models available:
  • OWRL 108S154OCT = 108" length
  • OWRL 114S154OCT = 114" length
  • Weighs = 885 lbs. and 985 lbs.
