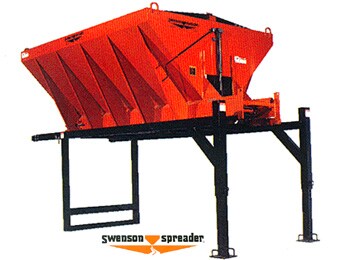

Swenson Spreaders - EV100



EV-100 Hydraulic Drive Spreader manufactured of 10 gauge carbon steel side/ends, 82" wide hopper, 7 gauge slotted longitudinals for easy gearbox/drive shaft removal, formed over longitudinals for greater rigidity 45-degree side slope, bolt in 6" wide flange(H) beam, Drop N Loc top screen, 6 tooth drive/idler sprockets, 1 1/2" drive shaft, spring loaded chain take-up, 7 gauge bolt in replaceable conveyor floor, self cleaning pintle style conveyor chain (21,000 lbs. tensile strength per strand), 1-1/2" x 3/38" double welded cross bars, 50:1 or 25:1 ratio gearbox, rear chain wiper,12" adjustable in height fully enclosed swing-up spinner extension, 2 internal spinner baffles, 4 overlapping baffles, lower spinner assembly with bottom mounted motor, 7 gauge 10" carbon steel spinner disc with fins, instruction manual and Omaha Orange or Federal Yellow.
 Download a Full Color Swenson Brochure - PDF Document
